EMTP®

Load-Flow, Stability, and EMT
simulations in the same software

• 35
  years of experience
• 5000+
  happy users
• 70
  countries
• 490+
  universities

What is EMTP®?

Electromagnetic transients program (EMTP®) is the reference for EMT simulations and analysis of power systems. With its unique capabilities and accuracy,
EMTP® is the industry's fastest, most accurate and most stable software.

• Load-Flow
  EMTP® has a very powerful unbalanced multi-phase load-flow
  solver capable of solving very large scale
  transmission and distribution grids, cases with more than
  300000 buses can be solved.
• Time-Domain
  EMTP® provides the most accurate,
  numerically stable, and consistent time-domain
  EMT simulations.
• Steady-State
  The electrical network equations are solved using
  complex phasors. This option can be used in the stand-alone
  mode or for initializing the time-domain solution.
  A harmonic steady-state solution can be achieved.
• Frequency-Scan
  A frequency scan simulation is available
  with EMTP® to determine the system impedance
  and to identify any possible resonance frequencies
  within the system.

Why Choose EMTP®?

During the time-domain simulations, several challenges can be met.
Here is how EMTP® answers them.

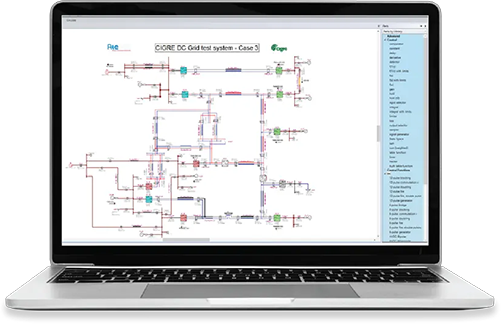

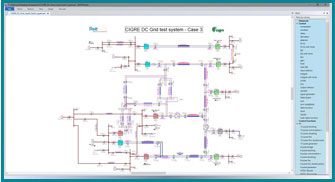

User-friendly GUI

Easy to use, it has a hierarchical architecture based on
subcircuit and it can handle very large grids.

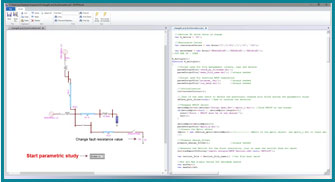

Completely Scriptable

Everything that can be done by hand can be
automated by scripts!

Computational Engine

It significantly improved solution methods for nonlinear models.
Easily solve wide range of problems from load-flow to very fast transients.

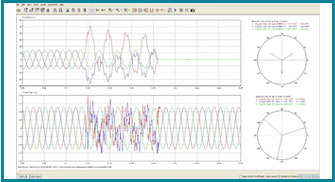

ScopeView

ScopeView is a data display tool for visualizing
and analyzing results of EMTP® simulations.

EMTP® Modules

EMTP® allows you to simulate fast to very fast electromagnetic transients.

• Renewables
  Toolbox
  EMTP® uses a fully iterative
  solver to solve nonlinear
  models as well as control
  systems with algebraic loops.
• Protection
  Toolbox
  Comprehensive library of
  protective relays, fuses and
  protection tools.
• Exciters and
  Governors Library
  Our Exciters and Governors
  Library includes more than 90
  standard models for governors,
  exciters and stabilizers.
• Simulink®
  Toolbox
  Simulink DLL allows you
  to access all EMTP®
  solution procedures externally
  and build the most complex models.

• PSS®E Import Tool
  PSS®E Import Tool allows
  automatic conversion
  of PSS®E network models
  for various EMTP® studies.
• LIOV Toolbox
  LIOV Toolbox is developed
  for the calculation
  of lightning-induced
  overvoltages on an overhead
  distribution network.
• PAMSuite
  It provides a powerful
  environment based on
  MATLAB® that enables
  exploration and analysis
  of results and identification
  of critical parameters.
• Request a quote
  Please fill in the form
  and specify your needs.
  Request

EMT Simulation Models

Co-simulation

Easily connects to Simulink® Compatible with FMI standard

Compatible with

PSSE®, Simulink®, CIM

Unlimited Network size

Machine Models

Advanced machine models and
their controls are included in EMTP®

Line and Cable Models

Accurate line and cable models and parameter
calculation routines

Transformer Models

Transformer models
(saturation of the magnetic core and hysteresis)

IBR Models

A large collection of IBR models - wind
turbines and photovoltaics

HVDC & FACTS Models

Fully detailed LLC models and built-in,
customizable MMC models

Relay Models

The most detailed protection relay
models in the industry.

Power Electronics Models

AC-DC and DC-DC AVM converters
are available in EMTP®

Control library

Contains a set of control blocks to build
control circuit, i.e. transfer functions,
logic, math functions, etc.
